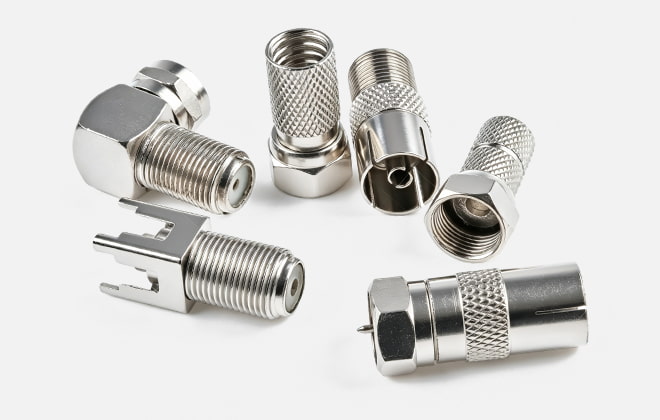

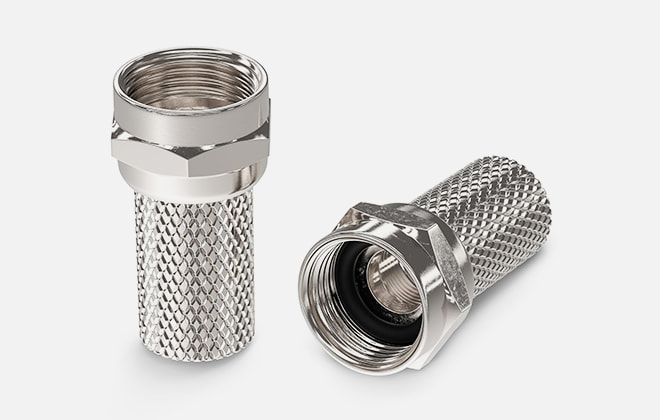

An F-Type connector is a widely used radio frequency (RF) coaxial connector designed primarily for75Ωimpedance systems. It features a simple threaded structure and low cost, commonly found in televisions, satellite receivers, and broadband equipment. The connector supports high-frequency signals well and is easy to install, playing an important role in video and communication signal transmission.

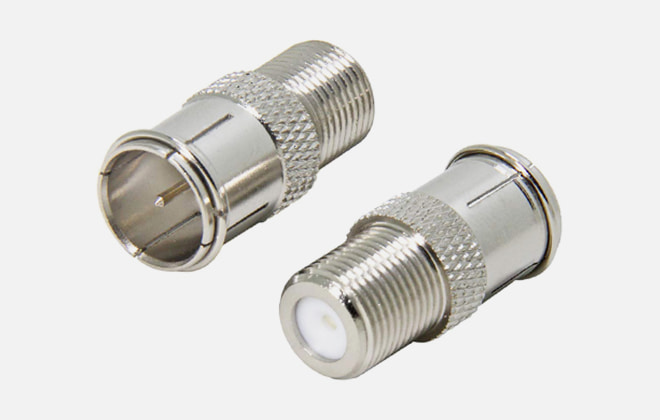

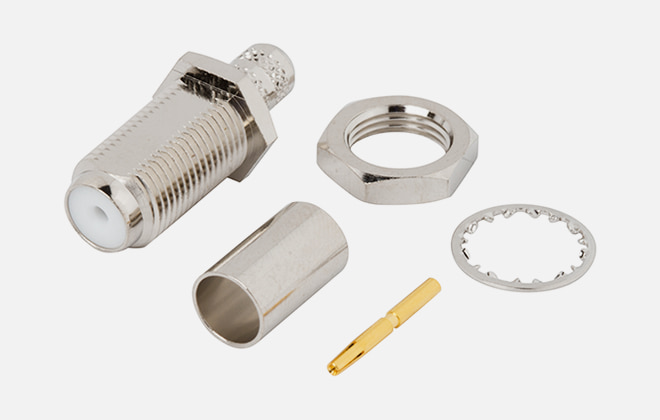

1. Electrical Performance of F-Type Connector
1. Impedance Matching Performance of F-Type Connector
Our F-Type connector provides a standard75Ωimpedance, enabling perfect matching with RG6 and RG59 coaxial cables. Excellent impedance matching effectively reduces signal reflection, ensuring more stable and clear transmission. Poor matching may result in weak signals or noise. Our product guarantees reliable matching for television and network systems.

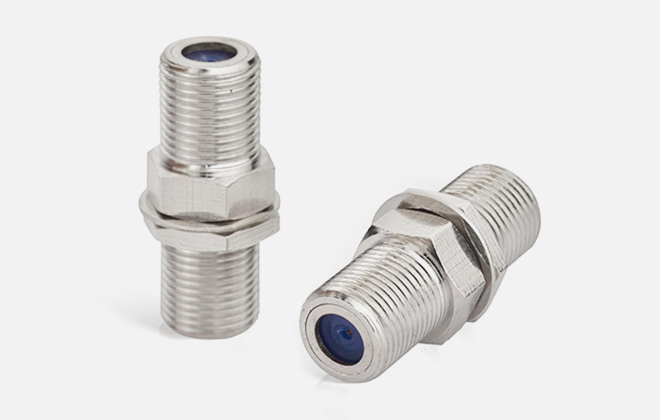

2. Frequency Range Support of F-Type Connector
This connector supports a wide frequency range, typically up to 3GHz, fully meeting the requirements of 4K television, satellite TV, and broadband networks. Higher frequencies deliver better transmission quality with low loss even over long distances, making it suitable for most residential and commercial signal transmission systems.
3. VSWR and Signal Stability of F-Type Connector
Our F-Type connector features an extremely low Voltage Standing Wave Ratio (VSWR). A low VSWR means less signal reflection and higher transmission efficiency, helping reduce interference and improve signal quality. Stable performance ensures smooth operation of televisions and RF devices. All products undergo strict testing to guarantee reliable VSWR performance in actual working conditions.
4. Insertion Loss of F-Type Connector
The insertion loss of this connector is controlled at a low level. Low loss ensures signals remain strong when passing through the connector, and the loss is acceptable even with long cables. This is critical for television and satellite signal transmission, allowing users to enjoy clear images without obvious noise or interruption.

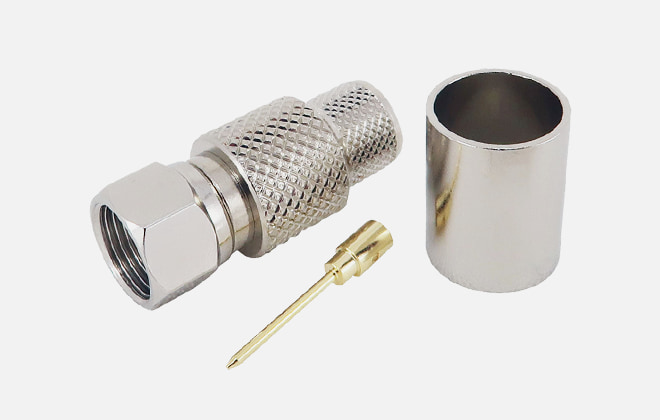

5. Shielding and Anti-Interference Ability of F-Type Connector
F-Type connectors offer excellent shielding performance to protect internal signals from electromagnetic interference, ensuring stable operation unaffected by external electronic devices. They are particularly useful in densely wired environments, with stable shielding making daily signal transmission more reliable.
6. Power Capacity of F-Type Connector
Our F-Type connector has a rated power capacity suitable for signal transmission, designed specifically for television, satellite, and RF systems rather than high-power equipment. The power rating ensures safe long-term use without easy damage in conventional communication systems, allowing safe operation for users.
2. Mechanical Structure and Installation of F-Type Connector

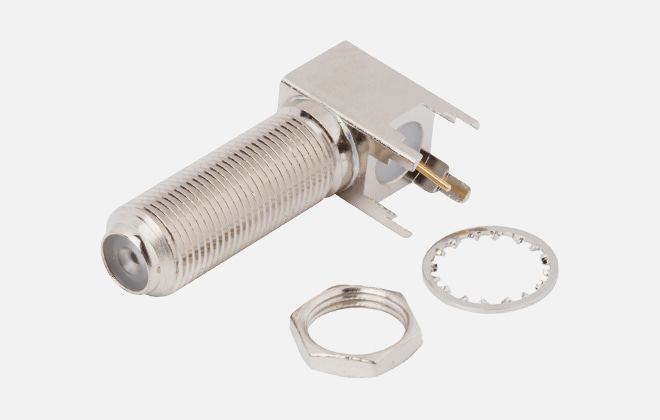

1. Structure Styles of F-Type Connector
We provide various structures including straight, right-angle, and panel-mount types. Straight types are for general applications; right-angle types save space in narrow areas; panel-mount types are suitable for equipment enclosures. Customers can select different styles based on device design and installation space.

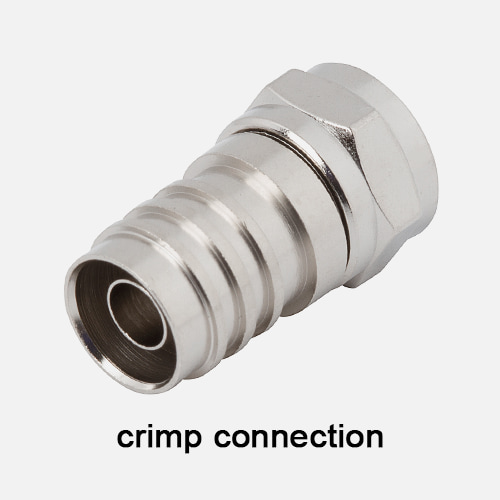

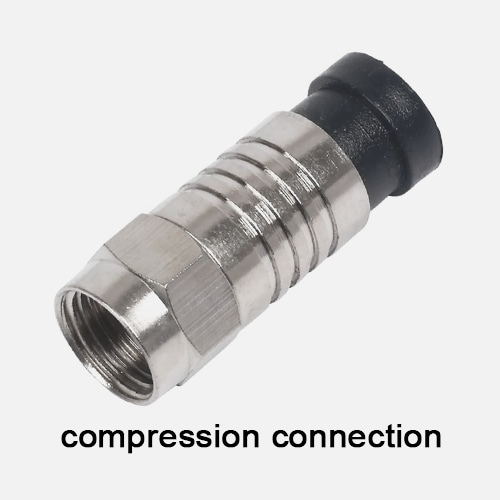

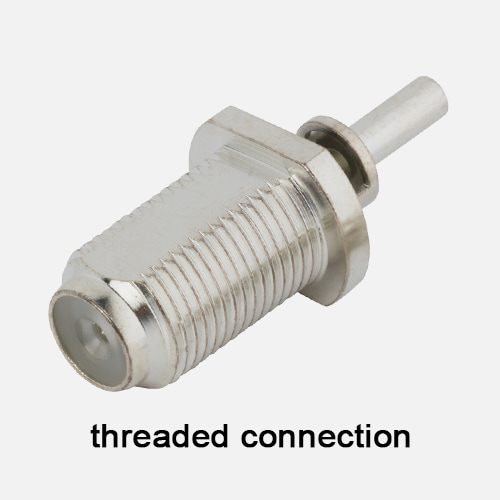

2. Connection Types and Reliability of F-Type Connector
We offer threaded, crimp, and compression connection types. Threaded types are firm and stable; crimp types are suitable for mass installation; compression types provide better waterproof performance. Each design aims to reduce loosening and signal failures, allowing customers to choose based on tools and application environments.

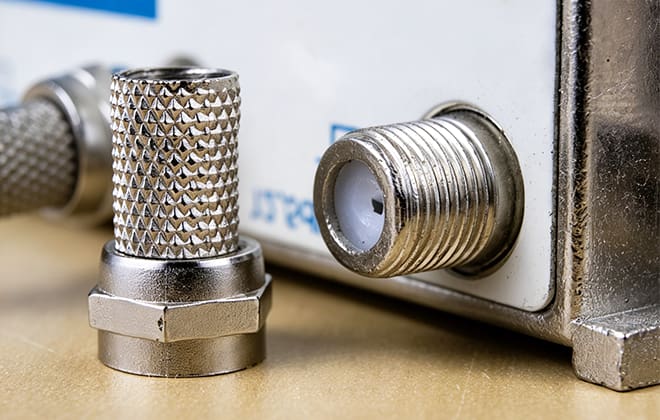

3. What is an F panel cable?
An F panel cable is a dedicated coaxial cable equipped with F-Type connectors, designed specifically for panel mounting. It is widely used in equipment cabinets, wall panels, set-top boxes, and distribution boxes to route RF or TV signals from internal to external interfaces. This cable provides a neat and stable wiring solution, saves installation space, and ensures reliable signal transmission. It features a sturdy structure, good shielding performance, and strong compatibility with standard F-Type connectors, being widely applied in residential wiring, commercial broadcasting systems, and communication equipment installation projects.
4. What type of cable uses an F Connector?
F-Type connectors are mainly used with standard 75Ω coaxial cables, the most common models being RG6, RG59, and RG11. These cables are widely applied in cable TV, satellite TV, broadband networks, and security monitoring systems. RG6 features low loss and strong anti-interference ability, making it the mainstream choice for residential and commercial signal transmission; RG59 is suitable for short-distance indoor wiring; RG11 is often used for long-distance transmission scenarios. F-Type connectors match these cables perfectly in size and impedance, guaranteeing stable and efficient signal transmission.

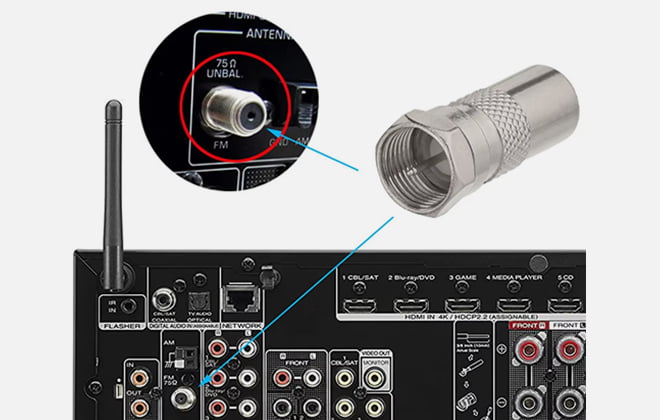

5. How to connect F-Type Connector to tv?
Connecting an F-Type connector to a TV is simple and convenient. First, locate the RF input port marked “ANT” or “CABLE” on the back of the TV. Align the threaded F-Type connector with the port and tighten it clockwise by hand until secure. Do not over-tighten with tools to avoid damaging the port or cable. A proper and firm connection ensures stable signal transmission, reduces interference, and delivers clear picture quality for TV, satellite, and broadband signals. Most users can complete installation easily without professional assistance.
6. Plug Life and Reusable Performance of F-Type Connector
Our F-Type connector supports multiple plug-and-unplug cycles, with a long service life ensuring repeated use. Performance does not degrade significantly after frequent use, making it suitable for testing, maintenance, and daily connections. The stable internal structure reduces wear and ensures long-term reliability.

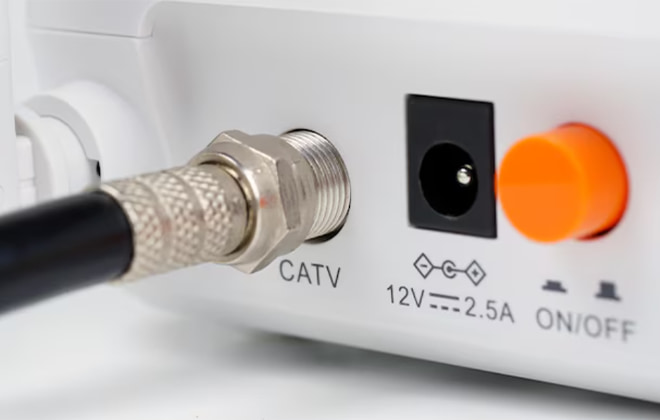

7. Recommended Tightening Torque of F-Type Connector
Proper torque is required when installing the connector. Over-tightening may damage threads, while under-tightening causes poor contact. Our product comes with standard torque recommendations; following these specifications ensures a secure connection and extends service life. Installers can easily master the correct force.
8. Anti-Loosening Design of F-Type Connector
Our F-Type connector is equipped with an anti-loosening structure, remaining securely fastened in vibrating or mobile environments, suitable for vehicles and outdoor equipment. The special thread design prevents accidental loosening, eliminating the need for frequent connection checks after installation.
3. Environment and Reliability of F-Type Connector

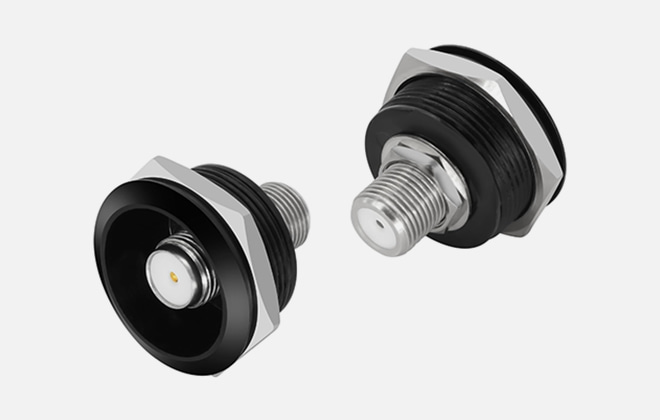

1. Waterproof and Dustproof Rating of F-Type Connector
Some F-Type connectors have a high waterproof and dustproof rating, enabling use in outdoor or humid environments. Sealing gaskets prevent moisture and dust ingress, while indoor products do not require such high protection. Customers should select appropriate models based on their application environment.
2. Performance at High and Low Temperatures of F-Type Connector
This connector operates well in both high and low temperatures, resisting extreme weather without performance degradation. Components do not soften or deform at high temperatures, and are not prone to cracking at low temperatures. Stable performance ensures a long service life in different regions.
3. Material, Plating and Corrosion Resistance of F-Type Connector
The connector uses high-quality metal materials and professional plating, commonly nickel or tin plating. Excellent plating effectively prevents rust and corrosion, making it ideal for coastal or humid areas. Superior conductivity also ensures stable signal transmission during long-term use.

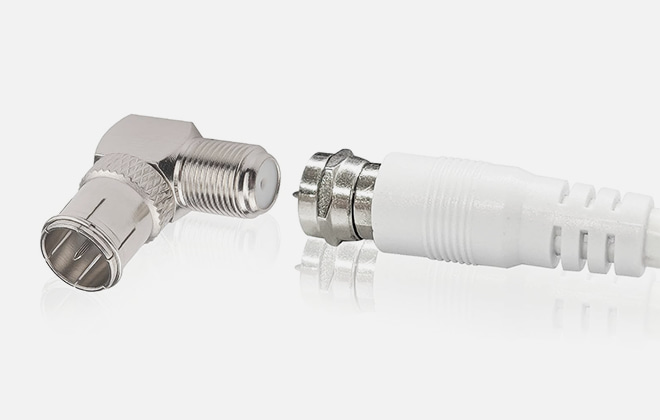

4. Vibration and Shock Resistance of F-Type Connector
Our F-Type connector offers good vibration and shock resistance, maintaining reliable contact even when devices shake or move, suitable for vehicles, outdoor equipment, and industrial sites. The sturdy structure is not easily disconnected, significantly improving operational reliability.
5. Service Life Under Normal Use of F-Type Connector
With proper installation and use, F-Type connectors have a long service life. High-quality materials and structure make them durable, maintaining performance for years without obvious degradation. Proper operation further extends their lifespan, making them a cost-effective choice for long-term projects.
6. Common Failures and Preventive Measures of F-Type Connector
Common failures include poor contact, water ingress, and rust. Most problems are caused by improper installation or harsh environments. Using appropriate tools and compatible models can avoid such issues, and regular inspections help detect hidden dangers early. Our design also effectively reduces the risk of failures.
4. Selection and Compatibility of F-Type Connector

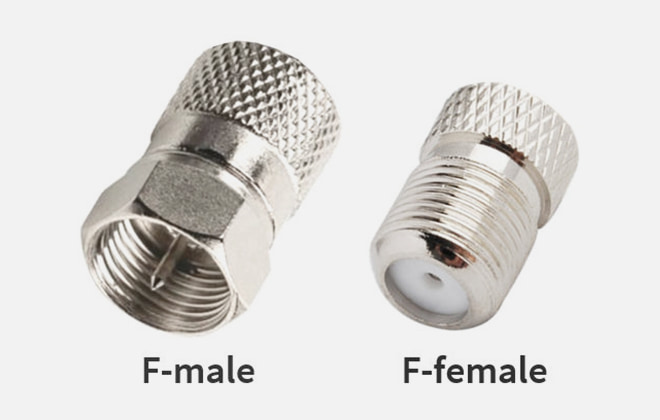

1. Selection of Male and Female Connectors of F-Type Connector
Male and female connectors must be properly paired. Cables typically use male connectors, and equipment ports use female connectors. Incorrect model selection results in connection failure. Customers should check device ports before purchase to ensure stable and efficient signal transmission.

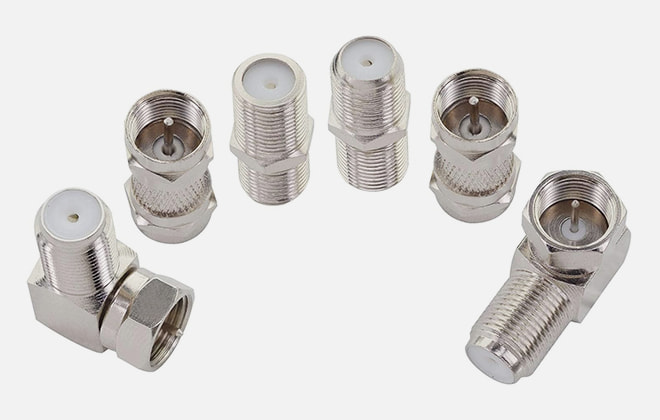

2. Compatibility and Adapter Support of F-Type Connector
F-Type connectors can interoperate with BNC, N-Type, and TNC connectors via adapters. Adapters increase flexibility across different RF systems, eliminating the need to replace entire cables. Using adapters easily resolves compatibility issues between different devices.

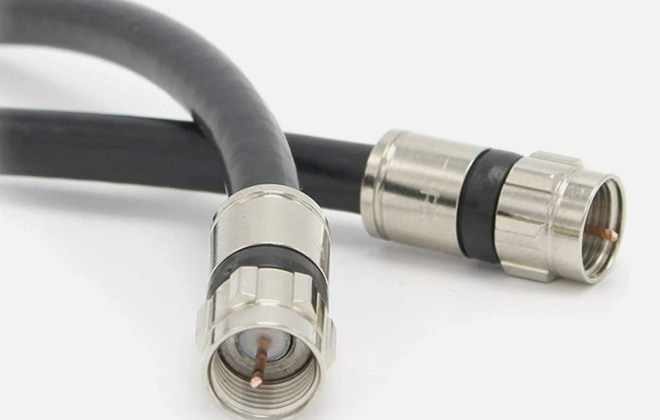

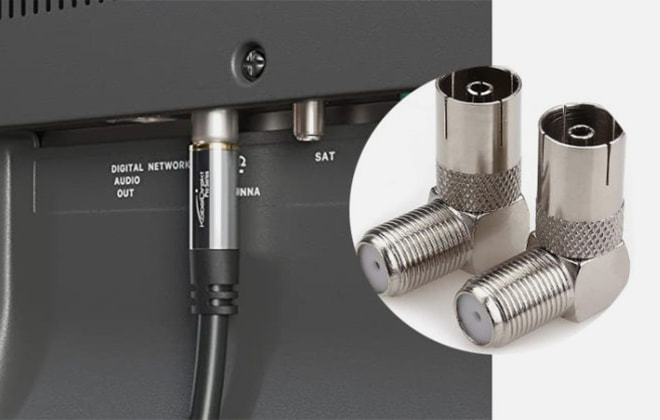

3. What are F-Type connectors used for?
F-Type connectors are mainly used in cable television, satellite TV, broadband networks, and security monitoring systems. They are widely applied in homes, buildings, hotels, and commercial areas to transmit stable RF and video signals. With standard 75Ω impedance, they ensure clear and reliable signal transmission. They are also commonly used in RF testing, antenna connections, and cable distribution boxes. Thanks to low cost, easy installation, and stable performance, they have become one of the most popular connectors in daily signal and video transmission fields.
4. Selection Solutions for Different Scenarios of F-Type Connector
Different scenarios require different F-Type connectors. Outdoor applications need waterproof and corrosion-resistant types, while indoor use can choose standard versions. Television systems require 75Ω impedance products, and industrial scenarios may need more durable structures. Correct selection improves stability and reduces costs.
5. F-Type Connector Compliance with International Standards
Our F-Type connector complies with international general standards, ensuring wide compatibility and matching with products from different brands. Customers do not need to worry about mismatching issues, making it suitable for global markets and various equipment systems.
6. F-Type Connector Advantages Over Other Connectors
Compared with BNC and N-Type connectors, F-Type connectors are smaller, cheaper, and easier to install, making them more suitable for household use. They provide sufficient performance for TV and broadband applications. Although not designed for high-power scenarios, they perform excellently in daily signal transmission.

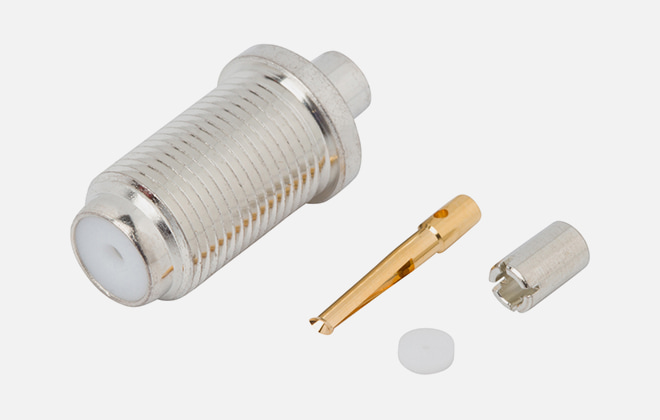

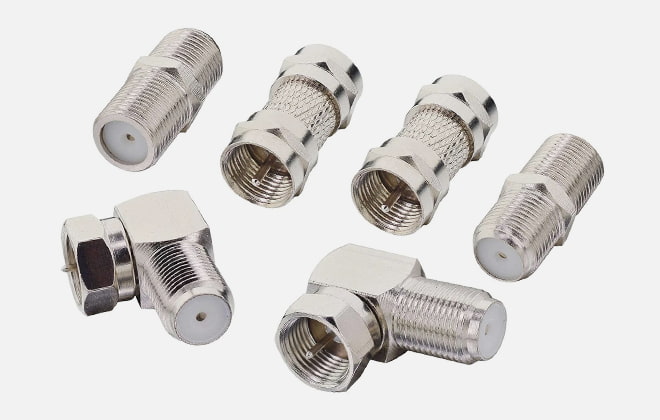

5. Cost and Delivery of F-Type Connector
1. Price and Bulk Discounts of F-Type Connector
We offer competitive prices for F-Type connectors, with favorable discount policies for large orders. Lower unit prices help customers reduce overall project costs. Despite affordable pricing, product quality remains reliable, delivering exceptional cost-effectiveness in large-scale wiring projects.
2. Cost-Effectiveness and Total Cost of F-Type Connector
Our F-Type connector features outstanding cost-effectiveness. Low purchase cost and long service life reduce total expenses, minimizing spending on maintenance and replacement for customers. Stable quality reduces failure rates, making it economical for both small and large projects.
3. Minimum Order Quantity of F-Type Connector
Standard products have a reasonable minimum order quantity, with small-batch orders available for sampling and testing. Large-batch orders support larger-scale production plans. Customers can test samples before mass purchasing, with flexible MOQs meeting diverse procurement needs.
4. Inventory Status and Delivery Cycle of F-Type Connector
We maintain sufficient inventory for standard F-Type connectors, with short delivery times helping customers complete projects quickly. Customized products require longer production times. We regularly update inventory to ensure fast supply, and emergency orders can be processed within a short period.
5. Customization Service Support of F-Type Connector
We provide F-Type connector customization services, allowing customers to customize structures, lengths, cables, markings, and special platings. Customized products better fit specific equipment, and we accept reasonable customization requests from customers.
6. Packaging and Transportation Safety of F-Type Connector
Our F-Type connectors use anti-static and moisture-proof packaging, providing excellent protection during transportation. High-quality packaging reduces damage rates, and clear markings facilitate storage and management. Customers receive products in intact and perfect condition.
6. Certification and After-Sales Service of F-Type connector
1. F-Type Connector Obtained Certifications
Our F-Type connector has passed multiple certifications including RoHS, enabling sales in many international markets. RoHS certification ensures environmentally friendly materials, and various certificates prove product quality and safety, allowing customers to use with confidence.
2. Warranty Period and After-Sales Service of F-Type Connector
We provide a clear warranty period for F-Type connectors, promptly addressing any quality issues. Our after-sales team assists with installation and usage problems, and defective products are replaced. Comprehensive after-sales service makes procurement more secure.
3. Sample Policy and Cost of F-Type Connector
We provide F-Type connector samples for customer testing, with reasonable sample costs and delivery times. Sample testing helps customers confirm quality before mass purchasing, and we support sample requests to reduce procurement risks.
7. Frequently Asked Questions of F-Type Connector

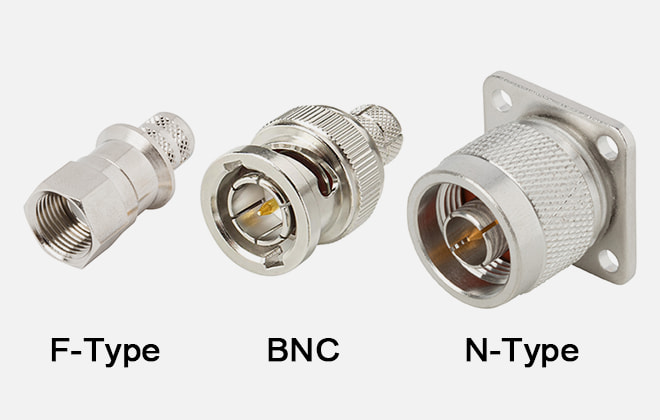

1. Selection of F-Type, BNC and N-Type
F-Type is suitable for 75Ω systems such as TV and satellite; BNC is used for quick connections in monitoring systems; N-Type is more durable for higher-power and industrial scenarios. Choose F-Type for daily use, BNC for video surveillance, and N-Type for industrial RF equipment.
2. Is Waterproof Type Necessary for Outdoor Use of F-Type Connector
Outdoor environments contain rain, dust, and moisture. Waterproof F-Type connectors protect internal components. Non-waterproof types are prone to rust and damage, and using waterproof models avoids signal failures. Waterproof types are recommended for long-term outdoor installations.
3. Can 75Ω and 50Ω Connectors Be Mixed
Mixing 75Ω and 50Ω connectors is not recommended. Impedance mismatch causes signal loss and reflection, potentially resulting in blurred images or noise. The same impedance should be used throughout the system, and correct matching ensures optimal transmission effects.
4. How to Judge F-Type Connector Quality
High-quality connectors have smooth surfaces, uniform plating, sturdy threads without burrs, and a solid feel. Connections are tight and stable, with low loss in signal testing. Poor-quality products have rough surfaces and are prone to loosening.
5. Methods to Reduce Loss During Installation
Install F-Type connectors gently with appropriate tools to avoid damaging cable cores. Keep connectors clean and dry, and tighten with moderate force–neither too loose nor too tight. Use high-quality compatible cables. Proper operation significantly reduces signal loss.
Who is the best supplier of F-Type connector
When looking for a reliable supplier of F-Type connectors, QL-Custom is your ideal choice. We are a professional manufacturer with rich experience in RF connectors and cable assemblies. Our F-Type connectors have stable performance, strict quality control, and complete certifications such as CE and RoHS. We support standard products and customized solutions to meet different application needs. With fast delivery, competitive price and professional technical support, we have won trust from customers all over the world.
If you need F-Type connector, please contact sales07@QL-Custom.com
